Encoders

Encoder stability and expected quality of content matters!

We equip you with encoders / streamers perfect for your IPTV project.

Ranging from low-cost solution to professional studio equipment.
Restreaming of Input-signals of 3rd party streams is also possible.

The AS-Encoder series is capture and streaming solution for TV and video signals. Unlike traditional coaxial cable or aerial based TV/video distribution systems, the AS-Encoders provide a cost-effective way to distribute TV/video contents over Internet. There are standard and customized models to satisfy various business and project demands.
Please tell us more about your project and we find the suitable encoder for you.

Encoder Stream image

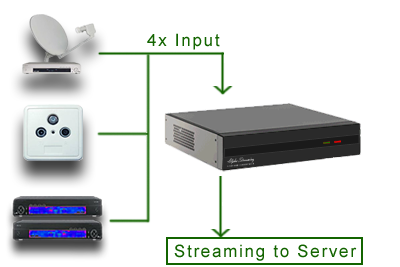

HDMI Encoder, 1-16 Channels

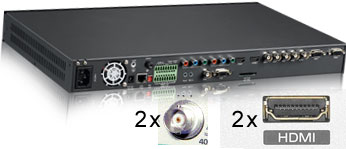

Encoder_ASEHDASE_ConnectorsHDMI_BNC
2x HDMI / 2x BNC

The ASEHD2 is a very compact, easy to use and propose best possibility to stream HD Channels as RTMP/UDP to your Streaming-Server. Each module comes with 2 independent HDMI inputs allowing the streaming of 2 simultimous channels which optimises the number of modules per rack.The administration of the ASEHD2 can be done remotely via Internet by connecting via Web-Interface and using DynDNS.

Technical data ASEHD2:
Video Resolutions:
1980×1080 Pixels
1280×720 Pixels
720×576 Pixels
360×288 Pixels

Video-Bitrates:
2000-8000 Kbps

Video Inputs:
HDMI / BNC

Audio Input:
BNC and/or 3.5mm Earphone Inputs

Audio-Bitrates:
96 Kbps

Inputs (HDMI/BNC):
1-16 Input-Signals

AV Encoder, 1-8 Channels

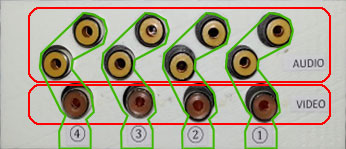

Encoder_ASEASE_Connectors

The ASE4 is a very compact, easy to use and propose best possibility to stream A/V as RTMP/UDP to your Streaming-Server. Each module comes with independent inputs allowing the streaming of up to 16 simultimous channels which optimises the number of modules per rack. The administration of the ASE4 can be done remotely via Internet by connecting via Web-Interface and using DynDNS. You can set On-Screen text and up to 3 “hide areas”.

Technical data ASE4:
Video Resolutions:
704×576 Pixels
352×288 Pixels
VGA
QVGA

Video-Bitrates:
32-2000 Kbps

Video Inputs:
Cinch

Audio Input:
Cinch Inputs

Audio-Bitrates:
96 Kbps

Inputs (A/V):
1-8 Input-Signals

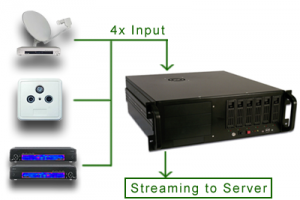

DVB-x tuner Encoder, >8 Channels

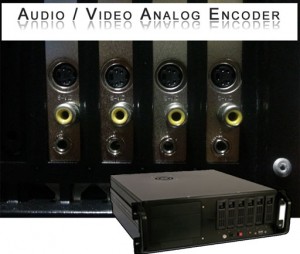

EncoderEncoder_Rear

The IET4 is a powerful, heavy duty and easy to use Encoder.
It proposes several possibilities (DVB-S, DVB-S2, DVB-T, A/V to RTMP/UDP). Each module comes with 4 independents tuners/capture inputs allowing streaming minimum of 4 simultaneous channels which optimizes the number of modules per rack.
The administration of the IET4 can be done by connecting via Remote-Desktop and using DynDNS.

Technical data IET4:
Video Resolutions:
1980×1080 Pixels
1080×720 Pixels
720×576 Pixels
360×288 Pixels

Video-Bitrates:
128-2000 Kbps

Video Inputs:
Cinch / SVideo

Audio Input:
3.5mm Earphone Inputs

Audio-Bitrates:
64-256 Kbps

Inputs (Transponders):
>8 Tuners
